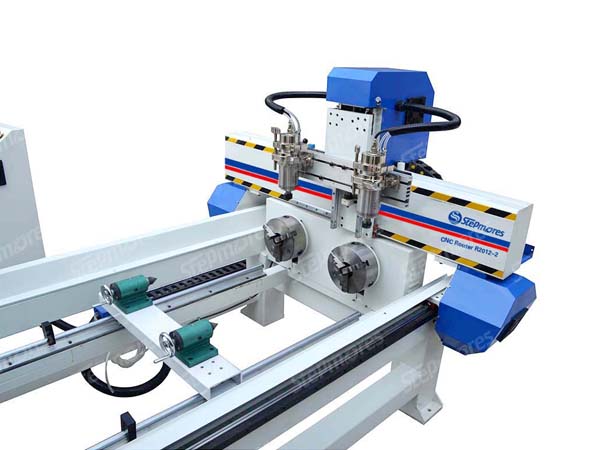

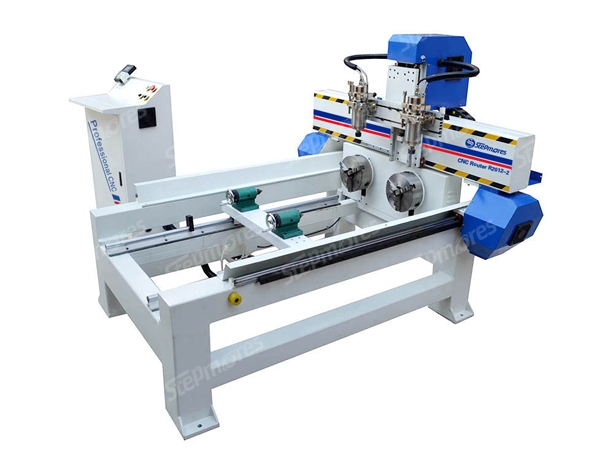

Фрезер с ЧПУ SM-2012R-2
| Max Rotary working diameter | 200mm |
| Max rotary working length | 1200mm |
| Rotary number | 2 sets （3/4 option) |
| Holding way | Chuck (thron option |
| Spindle power | 2.2kw water cooling(0-24000RPM) |
| Control system | Mach3 ( DSP option) |

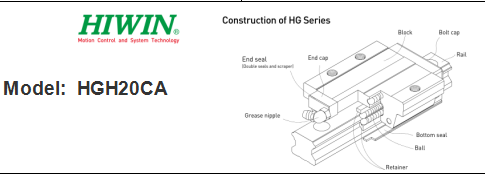

| Rail type | linear rails |
| Transmit | X Y Oblique gear rack/Z ballscrew |
| Max travel speed | 20000 mm/min |
| Working precision | 0.05mm |
| Power | AC220V±10%/50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
| command code | HPGL, G code |
| Machine/packing size | 1.8*1.2*1.42m/1.95*1.34*1.6m |
| Net/Gross weight | 420kg / 500kg |
