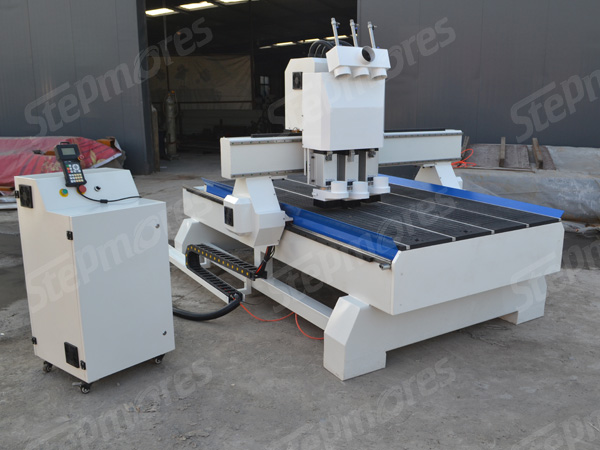

WOODWORKING CNC ROUTER 1325T3
| XYZ axis travel distance | 1300x2500x200mm |
| Feeding height | 200mm |
| Table size | 1350x3000mm |
| Spindle changing way | air cylinder |
| Spindle power | 4.5kw air cooling(0-18000RPM) x 3pcs |
| Rail type | linear rails |
| Control system | NK105CS |
| Drive type | easy servo |
| Transmit | X Y Oblique gear rack/Z ballscrew |
| Table type | Vacuum absorption with T slot clamping |
| Max travel speed | 40000mm/min |
| Working precision | 0.05mm |
| power | AC380V±10% / 50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
| Command code | HPGL, G code |
| Machine/packing size | 3.05*2*1.62m/3.16*2.13*1.86m |
| Net / Gross weight | 1400kg / 1600kg |
